How Thermal Imaging Works for Efficient Electrical Inspections

At the heart of preventing electrical issues is understanding how thermal imaging works. By converting infrared energy emitted by all objects into visible light, thermal imaging lets us ‘see’ heat and spot electrical problems in advance. This article delves into this pivotal technology and its application in safeguarding electrical systems, offering you an essential guide to its mechanics and uses.

Key Takeaways

  • Thermal imaging uses infrared technology to detect and display heat variations, wherein hotter areas appear in red and cooler areas in blue, thus enabling the identification of temperature-related issues in various objects including electrical components.

  • In electrical inspections, thermal imaging is invaluable for non-contact detection of hot spots and potential problems in electrical circuits, helping to predict failures and facilitating preventative maintenance while minimizing equipment downtime and safety hazards.

  • Effective thermal imaging requires trained professionals to interpret thermal patterns accurately, ideally under a load of 40% or more, and with adherence to safety practices such as using personal protective equipment and maintaining a safe distance from live electrical panels.

The Science Behind Thermal Imaging

Thermal imaging, an intriguing fusion of science and technology, employs infrared technology to detect and visually display heat emissions from various objects. The fundamental principle of thermal imaging is that objects above absolute zero emit infrared energy, with varying emission levels according to temperature.

Thermal cameras come into play by capturing this infrared radiation within their field of view and processing it to form a thermal map indicating temperature differences. In the resulting thermal map, different temperatures are represented by different colors, making warmer areas stand out in red and cooler areas in blue.

Infrared Radiation and Heat

Let's explore further into the science behind thermal imaging. Absorbed infrared radiation, a distinct range within the electromagnetic spectrum, can generate heat. It is often associated with heat because it can cause objects to increase in temperature upon absorption. Essentially, when objects heat up, their molecules vibrate faster, emitting infrared radiation.

The ability of infrared radiation to cause heating is crucial in thermal imaging. It allows infrared cameras, also known as thermal cameras, to:

  • Detect heat signatures

  • Identify apparent temperature differences

  • Discover higher temperatures

  • Identify hot spots

  • Detect heat generated by potential electrical problems even before they become apparent to the naked eye.

Thermal Camera Technology

Thermal camera technology further enhances the functionality of thermal imaging. An infrared detector in a thermal imager captures the radiation emitted by objects, converting it into an electronic image displaying the apparent surface temperature. The camera’s optical system focuses the infrared energy onto a sensor array, where each pixel generates an electronic signal corresponding to the detected temperature.

The resulting thermal image represents temperatures as gradient colors, highlighting differences with brighter colors for hotter areas and darker colors for cooler areas. Advanced thermal cameras incorporate technologies like IR-Fusion, which blends visual and infrared images for better detail and accurate identification.

Electrical Inspections Using Thermal Imaging

Having grasped the scientific and technological underpinnings of thermal imaging, we can now delve into its practical utility in electrical inspections. Thermal imaging enhances safety by:

  • Allowing non-contact inspections

  • Rapidly and accurately identifying problems before they result in serious failure

  • Aiding in the inclusion of these inspections in preventative maintenance, contributing to reduced equipment downtime.

Thermal imaging serves as a critical tool for detecting hot, defective components, loose or corroded connections, wire crimps, and breaker issues, as well as illustrating overheating in electrical systems owing to internal connection problems and the effects of electrical unbalance. By pointing a thermal camera at critical components such as electrical panels, high-load connection points, drives, disconnects, and other electrical devices, inspectors can scan for hot spots and capture relevant thermal images. Consistent use of thermal imaging in inspections allows for the early detection of failures and provides invaluable data that supports preventative measures, minimizing the likelihood of equipment breakdowns, electrical fires, safety hazards, and unnecessary liability or injury.

Identifying Hot Spots and Abnormal Heating

Identifying hot spots and abnormal heating in electrical systems forms a major aspect of electrical inspections using thermal imaging. By examining temperature differences between components under similar loads, thermal imaging can diagnose potential issues. Small points of heating in electrical components, such as those found in switch contacts and connectors, may indicate early signs of failure.

Thermal imaging is a technique employed by technicians to scrutinize the condition of three-phase electrical circuits. This process is crucial for pinpointing discrepancies in performance that may be attributed to either unbalance or overloading, both of which could precipitate electrical failure. Additionally, thermal imaging reveals instances of high resistance or excessive current flow, which are the primary culprits behind abnormal heating within electrical systems. The distinct thermal patterns captured by infrared thermography can also indicate increased resistance that leads to system overheating, often due to aging components, oxidation, or substandard installation that results in loose connections.

Preventative Maintenance and Safety

Regular thermal imaging inspections form an essential part of preventive maintenance for both electrical and mechanical equipment, detecting early signs of equipment overloading or potential failures, and preventing costly breakdowns. Thermal imaging enhances safety by allowing inspections of live electrical equipment without direct contact, minimizing the risk to maintenance personnel and avoiding business interruption during surveys.

Establishing a regular inspection routine using thermal imaging creates a historical baseline of electrical systems. This aids in detecting unusual thermal patterns and prioritizing repair efforts based on safety and equipment criticality. Industry standards such as those provided by the National Electrical Manufacturers Association (NEMA) offer guidance on acceptable voltage unbalance levels, reinforcing the importance of regular thermal imaging for maintenance and troubleshooting.

Practical Applications of Thermal Imaging in Electrical Systems

From residential homes to commercial and industrial facilities, thermal imaging finds a wide range of applications in various settings. It can reveal issues like a hot fuse nearing its current capacity or a cooler-than-normal fuse possibly blown, irregular temperatures in motor control center components, undersized or overloaded conductors, and improperly functioning HVAC electrical components.

Thermal inspections can be executed without shutting down power systems, offering an efficient, non-disruptive method for identifying only the equipment needing repair, thus allowing maintenance planning without affecting operational commitments. Drone-assisted thermal imaging services enhance the inspection processes for utility companies, providing comprehensive data collection, analysis, and reporting, thereby enhancing the reliability and resilience of their systems.

Beyond electrical systems, thermal imaging also assists in detecting a wider spectrum of issues such as overheating in mechanical systems, building inefficiencies, and structural defects in construction.

Residential Electrical Inspections

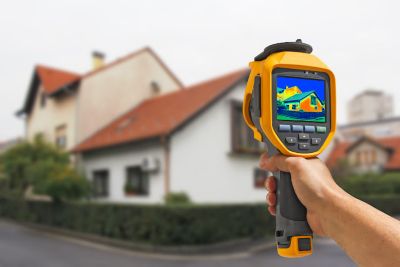

For the average homeowner in Arizona, handheld thermal cameras are a practical tool for electrical inspections, detecting issues that are not visible to the naked eye. With a handheld thermal camera, thermal imaging can reveal critical residential issues like electrical system malfunctions, HVAC inefficiencies, and potential fire hazards by identifying hot spots.

However, it’s worth mentioning that despite the power of thermal imaging, it should be operated by a professional with a firm grasp of electrical measurement and the equipment under inspection. So, while it’s great to understand the technology, it’s equally important to trust professionals to conduct thorough inspections and ensure the safety and efficiency of your home.

Commercial and Industrial Electrical Inspections

In commercial and industrial environments, thermal imaging plays a pivotal role in the examination of operational electrical equipment, including distribution fuseboards, MCB boards, contactors, and transformers. This ensures the continuity of business activities. IR sensors are key to proactively detecting thermal irregularities in a variety of components, such as utility poles, switch blades, and compression fittings. These elements are crucial for maintaining the integrity of electrical systems and avoiding interruptions in service.

Establishing regular inspection routines and recording baseline thermal readings are critical for monitoring changes and preserving the integrity of electrical distribution systems. These practices enable businesses to preempt equipment malfunctions, sustain operational efficiency, and safeguard their electrical infrastructure.

Tips for Effective Thermal Imaging Inspections

The most effective results from thermal imaging cameras are achieved when they are in the hands of experienced technicians who have a deep understanding of electrical systems and the specific equipment under evaluation.

For optimal conditions during thermal imaging electrical assessments, it is advisable for the system to be running at a minimum of 40 percent of its rated load capacity. Safety is of utmost importance during these inspections, necessitating the use of suitable personal protective gear to guard against arc flash hazards and ensuring a safe distance of at least 4 feet from any energized electrical panels.

Parker & Sons

If you’re a homeowner in Arizona, you can count on Parker & Sons for your electrical inspection needs. Our team of experts utilizes thermal imaging technology to ensure the safety and efficiency of your home or business. Don’t leave your electrical safety to chance; schedule an appointment with us today and experience the peace of mind that comes with knowing your electrical systems are in good hands.


In conclusion, thermal imaging is a powerful tool for electrical inspections, providing a non-invasive way to detect potential issues before they turn into serious problems. From understanding the science behind thermal imaging to exploring its practical applications in residential, commercial, and industrial settings, it’s clear that this technology plays a crucial role in ensuring the safety and efficiency of electrical systems. Whether you’re a homeowner in Arizona or a business owner, regular thermal imaging inspections should be a part of your preventative maintenance routine.

Frequently Asked Questions

Can thermal imaging detect electricity?

Yes, thermal imaging can detect electricity by identifying abnormally hot electrical connections or components, which can indicate potential issues. This technology is commonly used by electrical workers to maintain the health of electrical panels and prevent failures or fires.

How accurate is thermal imaging temperature?

While thermal imaging provides valuable temperature readings, it's important to note that without ongoing calibration with a black body reference, the accuracy of these measurements can have a margin of error around 2°C. This variance may make it less precise compared to other methods of temperature measurement.

What is the science behind thermal imaging?

The science behind thermal imaging involves converting infrared radiation into visible images that show temperature differences in a scene. This process allows thermal cameras to capture and display heat patterns.

How is thermal imaging used in electrical inspections?

Thermal imaging is utilized in electrical inspections to identify hot spots, detect defective components, and anticipate potential failures, contributing to preventative maintenance and enhancing safety through non-contact inspections. This technology is crucial in maintaining the safety and efficiency of electrical systems.

What are some practical applications of thermal imaging in electrical systems?

Thermal imaging in electrical systems can be used to detect issues such as malfunctions, inefficiencies, and potential fire hazards by identifying hot spots. This has practical applications in residential, commercial, and industrial settings.
